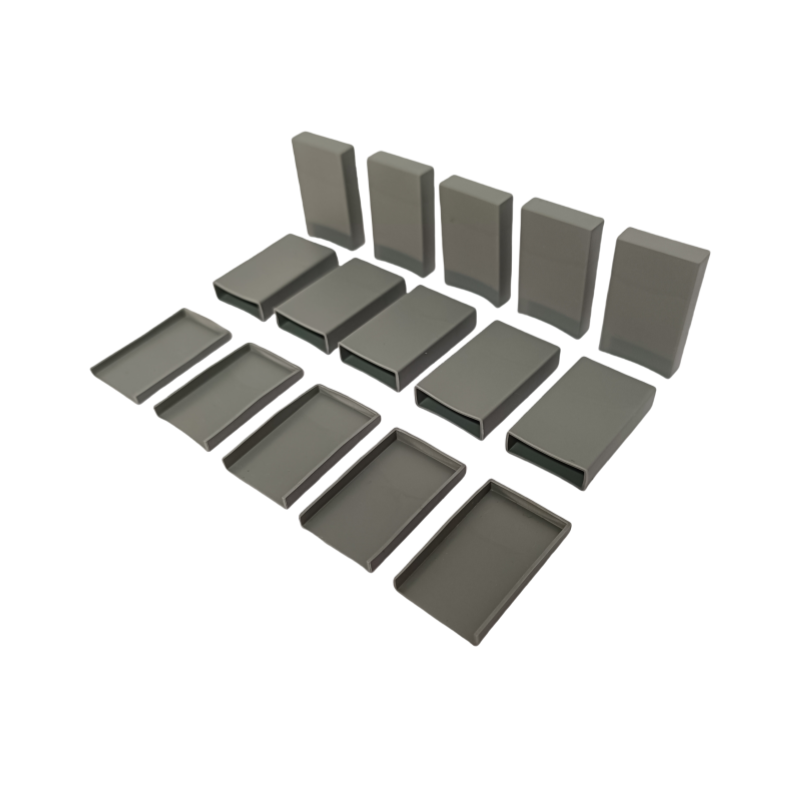

| 规格 Specifications | |||||
 |
产品型号 | Size/mm | Size/mm | Size/mm | Size/mm |
| Part No | A | B | C | D | |
| To-220A | 21.5±0.3 | 11.5±0.25 | 5.9±0.2 | 0.5±0.05 | |
| To-220B | 16.0±0.3 | 11.5±0.25 | 5.9±0.2 | 0.5±0.05 | |
| TO-3PA | 28.5±0.4 | 17.5±0.3 | 5.9±0.2 | 0.5±0.05 | |
| TO-3PC | 22±0.3 | 17.5±0.3 | 5.9±0.2 | 0.5±0.05 | |
| 特性参数 Physical Parameters | |||||
| 产品应用端Applications | 特性 Property |
单位 Unit |
测试方法 Test Method |
测试值 Typical Value |
|
| >开关电源 | |||||
| Switching Power Modules | 颜色 Color |
常用的是灰色(Gray)和蓝色(Blue) | —— | ||
| >不间断电源设备 | |||||
| UPS Equipment | 比重 Specific Gravity |
g/Cm3 | ASTM D297 | 1.5~2.0 | |
| >发热晶体管/二极管/三极管 | |||||
| Heating transistors/diodes/ dynatron |
硬度 Hardness |
Shore c | ASTM D2240 | 70±5 | |
| >汽车电子设备的散热 | 抗拉强度 Tensile Strength |
kgf/cm | ASTM D412 | 30±3 | |
| Heat dissipation of automotive electronic equipment | |||||
| 耐温范围 Continuous Use Temp |
℃ | EN344 | –40～＋200 | ||
 |
|||||
| 耐电压 Dielectric Breakdown Voltage |
V/mil | ASTM D149 | >4000 | ||
| 阻燃等级 Flame Rating |
____ | UL-94 | V-1 | ||
| 导热系数 Thermal Conductivity |
W/m.K | ASTM D5470 | 1.0 | ||
